Beyond the Install: Architecting a Hardened RKE2 + Rancher Platform on Rocky Linux

Eric Black

02 Mar 2026 — 1 min read

Kubernetes is notoriously easy to install but significantly harder to "wire" correctly—especially when you factor in High Availability (HA) networking, certificate management, and a production-grade backup strategy from day one.

This week, I stood up a new Kubernetes platform built on Rocky Linux using RKE2 and Rancher, with Kasten K10 integrated for data protection. Here is a look at the architecture and the hardening steps taken to get it production-ready.

Architecture Highlights

RKE2: Leveraging RKE2 for an upstream-aligned Kubernetes distribution with embedded etcd.
HA Networking: HAProxy provides a Virtual IP (VIP) for both the API server (6443) and ingress traffic (80/443).
Ingress Path: RKE2 ingress-nginx sits behind a NodePort, which is fronted by the HAProxy layer.
Centralized Management: Rancher handles the cluster lifecycle and RBAC.
Internal PKI: A custom Root CA was used for all externally exposed services to maintain a private, trusted chain.

The Hardening "Gotchas"

Setting up a cluster is one thing; hardening it requires navigating some specific friction points:

TLS Identity: I replaced the default dynamiclistener certificates with internally signed TLS.
Ingress Clean-up: I removed cert-manager ingress shims to prevent secret regeneration conflicts that often occur when mixing internal CA logic with automated controllers.

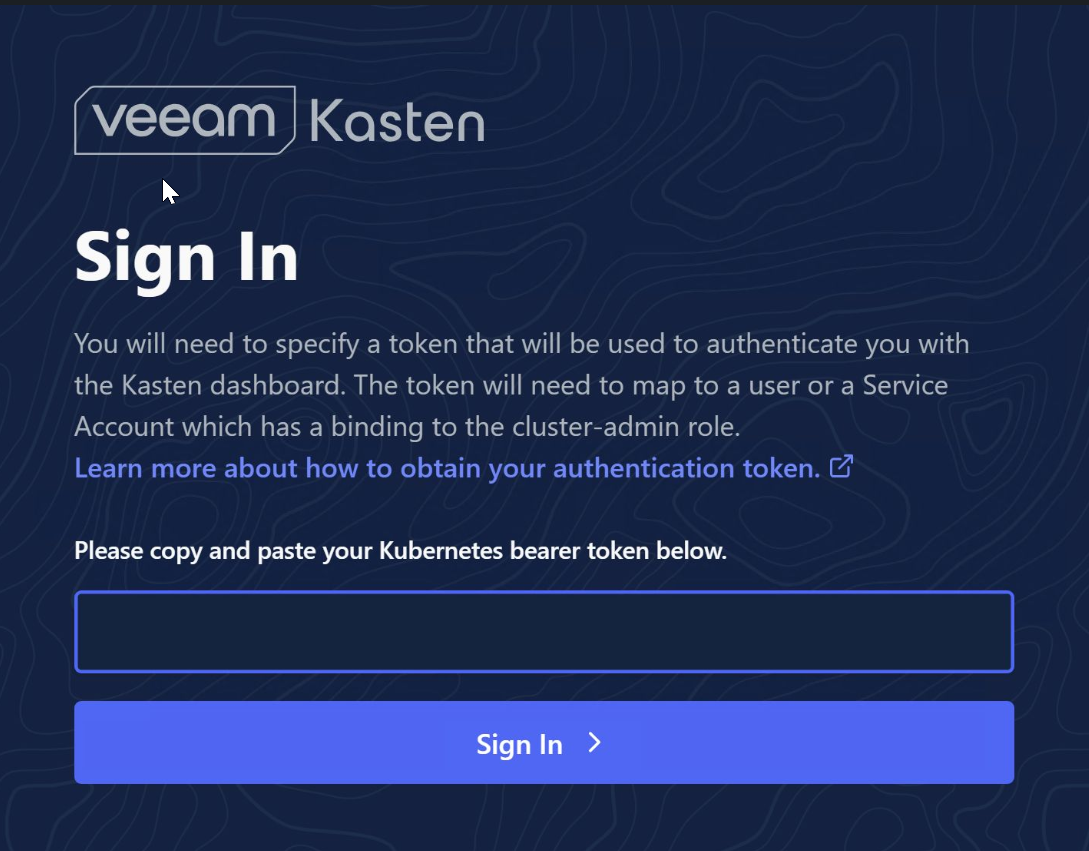

Access Control: Implemented explicit RBAC-backed access to Kasten using Kubernetes bearer tokens rather than broad permissions.
Scoped Protection: Backup policies are scoped at the namespace level, moving away from broad cluster-wide defaults to ensure granular recovery points.

The Storage & Backup Layer

For this phase, the storage layer uses an NFS external provisioner as the default StorageClass. Because this is a non-CSI backend, Kasten is currently configured for file-level backups.

The Takeaway

The real work of platform engineering isn't in the yum install. It’s in the integration: making sure the certificates don't conflict, the load balancer correctly tracks the ingress nodes, and the backup policy knows exactly what it’s looking at.

Next Phase: Validating restore workflows, evaluating CSI-backed storage to enable snapshot-based protection, and S3 bucket integration testing.

Designing for the Worst Case: Immutable Architectures in Regulated Environments

In highly regulated sectors, "good enough" backups are no longer an option. Compliance and cyber-resiliency now demand architectures that are both tamper-proof and reliably recoverable. My recent paper, "Designing and Operating Immutable Backup Architectures in Highly Regulated Enterprise Environments," deep-dives into building these defenses using Veeam

Beyond the Perimeter: A Zero Trust Blueprint for Data Resilience

Backup systems are the last line of defense when ransomware, insider misuse, or natural disasters strike. Historically, these environments operated under the assumption that internal users were trustworthy—a model that is now obsolete. In my latest whitepaper, "Zero Trust Architecture for Enterprise Backup Infrastructure," I outline a

Validating Kubernetes Resilience: Veeam Kasten on Rocky Linux

Over the past few weeks, I’ve been building out a Kubernetes platform on Rocky Linux using Rancher to evaluate modern backup and recovery approaches. A primary goal was to validate Veeam Kasten in a live environment. After deploying Kasten and integrating it with object storage, I implemented policy-driven protection

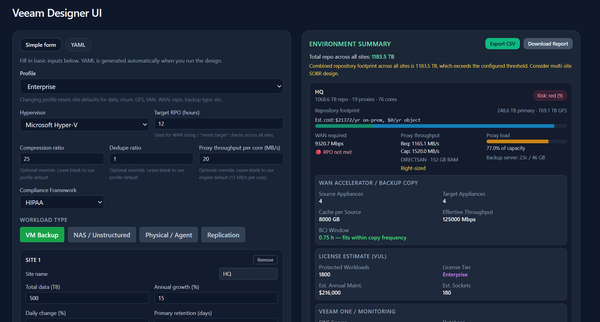

Design, Don’t Guess: Scaling Veeam Infrastructure with Veeam_Designer v3.1.0
