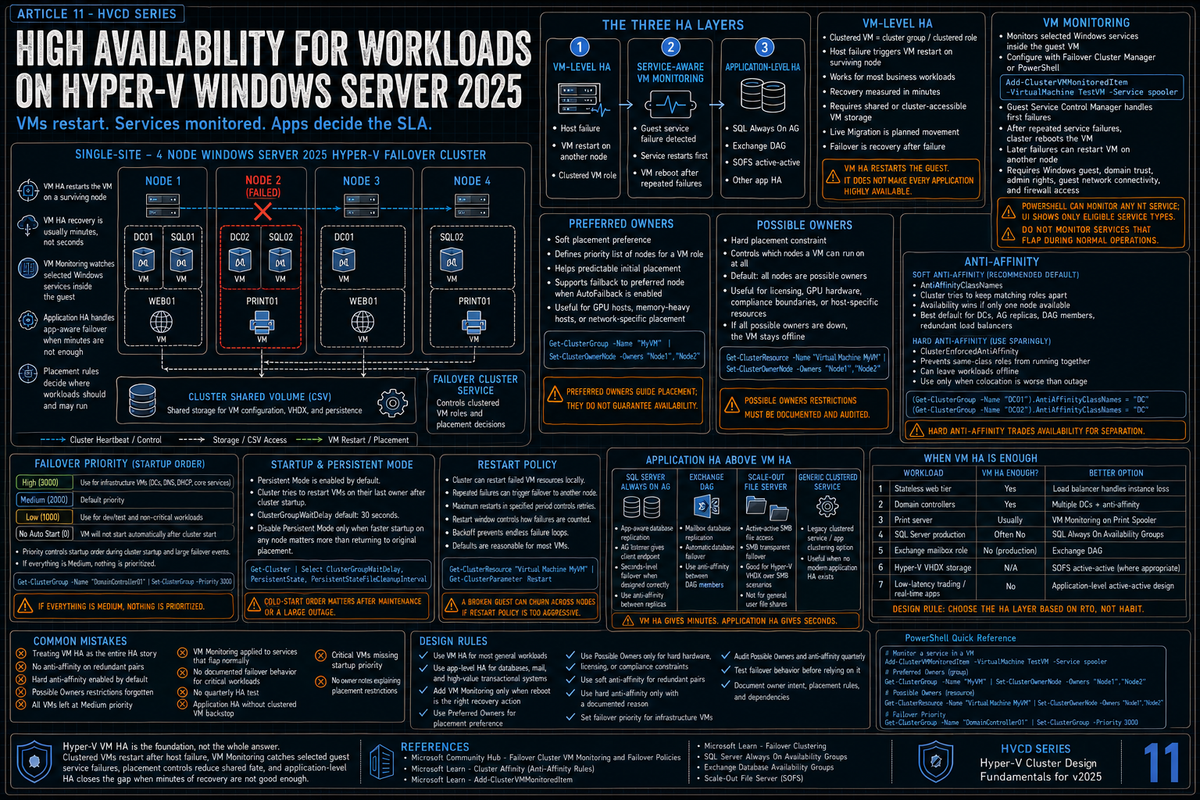

High Availability for Workloads on Hyper-V Windows Server 2025

Article 11 in the Hyper-V Cluster Design Fundamentals for v2025 series. This article covers high availability for workloads on Hyper-V: VM level HA mechanics, cluster VM monitoring with service awareness, preferred and possible owners, anti affinity (soft and enforced), failover priority levels, application level HA on top of VM HA, when VM HA is enough, when it is not, and the HA design mistakes that look fine until the failover that proves they were not.

VM level HA is the easy part. The cluster restarts a VM on another node when the host fails. That alone solves most availability problems and it is what most workloads actually need. The harder questions are: what about a VM that is up but the application inside it is down, what about workloads that need application aware failover, where do you place VMs to spread blast radius, and what failover policies do you set so the cluster does the right thing under stress.

The point of this article is to cover the HA design choices that the cluster offers and the layering of HA strategies on top of each other. The default settings work for most workloads. The exceptions are the ones that cause expensive incidents, and they are the ones worth thinking about deliberately.

VM level HA: what the cluster does by default

When a Hyper-V VM is added to a failover cluster (the cluster role for the VM is created), the cluster takes responsibility for keeping the VM running. The default behavior:

• If the VM crashes inside the guest, the VM is restarted on the same host.
• If the host fails, the VM is restarted on a surviving host.
• If the host is gracefully evacuated (drain, maintenance mode), the VM live migrates to another host.

Per the Microsoft Community Hub blog on Hyper-V VM failover policies, when there is a failure of a node, VMs are spread across the remaining cluster nodes and distributed to the nodes hosting the fewest VMs. The cluster takes one VM at a time, finds the surviving node with the lowest count, places the VM, then moves to the next.

To prevent boot storms where a large number of VMs starting simultaneously could overwhelm the host or the underlying storage, per the same Microsoft post, VM start is throttled to 32 VMs concurrently in the process of being started at any given time on each node, with the rest queued up. Once a VM completes starting (the cluster resource transitions from Online Pending to Online), another VM is started.

This default behavior is correct for most workloads. The VM goes down with the host, and the VM comes back somewhere else. Application sessions are interrupted, and clients reconnect. For stateless web tiers, file servers, print servers, jump hosts, monitoring infrastructure, and most line of business workloads, this is enough.

VM monitoring: service awareness

Per Microsoft Community Hub (How to configure VM Monitoring in Windows Server 2012, the foundational reference), Failover Clustering provides VM Monitoring which allows the host cluster to monitor the health of services running inside the guest VM and take recovery actions when a service fails.

The mechanics:

• You configure one or more services inside the VM as monitored items, either through Failover Cluster Manager or with Add-ClusterVMMonitoredItem.
• The Service Control Manager inside the guest handles the first two failures of a monitored service, restarting it according to the service recovery configuration.
• On the third failure (or per Microsoft Community Hub: when the service fails three times), the cluster service on the host takes over recovery actions. The VM is rebooted, initially on the same host. On subsequent failure the VM restarts on another node.

The PowerShell example documented across Microsoft sources:

Per Microsoft Community Hub, the Failover Cluster Manager UI only shows services that run in their own process (SQL, Exchange) plus IIS and Print Spooler which are exempted from that rule. PowerShell can monitor any NT service without restriction.

Requirements per Microsoft documentation

• Both the Hyper-V hosts and the guest VM must be running supported versions of Windows Server (per Microsoft Community Hub, the original feature requires WS2012 host and guest minimum)
• The host and guest operating systems must be in the same domain or in trusting domains
• The Failover Cluster administrator must be a member of the local administrators group inside the VM
• The cluster must have network connectivity to the guest operating system via the virtual network adapter
• The relevant firewall rule inside the guest must be enabled

Per a Microsoft Q&A discussion, VM Monitoring relies on Windows specific integration services and is documented for Windows guests. Linux guest VM monitoring at this level is not directly supported by the Failover Cluster VM monitoring feature.

When to use it

VM monitoring is a middle ground between pure VM HA (the host died, restart the VM) and full application aware HA (the application has its own clustering). It catches the case where the VM is up but a critical service inside has crashed and is not coming back. It is reasonable for:

• Print Spooler on print servers
• SMB Server services on file servers (where the file server is not running on Scale Out File Server)
• Custom NT services that the workload depends on
• IIS on web servers where the site cannot be accessed via the web tier load balancer health probe

Use it carefully. A VM monitor that triggers a reboot of a busy production VM during normal operations because of a transient service issue creates more impact than it prevents. Test the recovery action behavior in a non production environment first.

Preferred owners

Per Microsoft Community Hub, Preferred Owners is a property of cluster groups (which is what a clustered VM technically is) that defines a priority list of nodes the VM should run on. The cluster walks the preferred owners list when placing a VM, overriding the default behavior of selecting the node currently hosting the fewest VMs.

What preferred owners gets you:

• VMs return to their preferred node after a failover (when the preferred node comes back) if AutoFailback is enabled
• Predictable initial placement when VMs come up after cluster cold start
• The ability to keep VMs together with hosts that have specific resources (GPU enabled hosts, high memory hosts, hosts attached to specific network segments)

The PowerShell pattern (per the cluster affinity Microsoft Learn page and the Microsoft Community Hub references):

Possible owners

Possible Owners is the harder constraint. Per multiple Microsoft Community Hub references, Possible Owners controls which nodes a VM can fail over to at all. By default, all cluster nodes are possible owners. Restricting possible owners means the VM will never run on the excluded nodes, even when those are the only ones available.

What possible owners gets you:

• Workload isolation by license boundary (some software is licensed per host where it runs; restricting possible owners limits the licensed host count)
• Hardware specific placement (GPU workloads on GPU enabled hosts only)
• Compliance separation (workloads that must run on PCI scoped hosts only, for example)

The PowerShell pattern:

Anti affinity

Per Microsoft Learn (Cluster affinity), failover clustering uses anti affinity to keep specified roles apart from each other. The two flavors:

AntiAffinityClassNames (soft)

Per Microsoft Learn, AntiAffinityClassNames is a soft block. The cluster tries to keep the specified roles apart, but if it cannot (because there is only one node available, for example), it will still allow them to run on the same node. This is the right setting for most anti affinity needs because high availability of the workloads takes precedence over the placement preference.

The classic use case per Microsoft Learn and multiple community references: keep domain controller VMs on separate hosts so a single host failure does not take down all domain controllers.

The PowerShell pattern:

Both VMs now share the AntiAffinityClassNames value "DC" and the cluster tries to keep them on different hosts.

ClusterEnforcedAntiAffinity (hard)

Per Microsoft Learn, ClusterEnforcedAntiAffinity is a cluster level property that turns the soft block into a hard block. With it set, the cluster will prevent at all costs any of the same AntiAffinityClassNames values from running on the same node, even if that means leaving one of the groups offline.

To check the current state:

Per Microsoft Learn, the default is 0 (disabled, soft anti affinity only). Setting it to 1 enables enforcement.

Per Microsoft Learn, in a two node scenario with ClusterEnforcedAntiAffinity enabled, if one node is down, both groups will not run. That is by design and that is exactly the operational risk: hard anti affinity guarantees separation but at the cost of availability when capacity is constrained. Use it only when colocation is genuinely worse than one of the workloads being offline.

When to use which

• Soft (AntiAffinityClassNames). The default for almost every anti affinity scenario. Keep DCs apart, keep DAG members apart, keep cluster nodes of guest clusters apart, but do not block availability when capacity is tight.
• Hard (ClusterEnforcedAntiAffinity). Only when running together causes worse problems than one being offline. Some PCI compliance scenarios. Some workloads where shared host fate is contractually prohibited. Most environments should leave this disabled.

Failover priority

Per the Microsoft Community Hub failover policies post and multiple Microsoft references, clustered VMs have a priority setting that determines start order during cluster startup and after node failures. The priorities (settable via Failover Cluster Manager or PowerShell):

• High. Start first. The most critical workloads get this.
• Medium. Default. Most VMs.
• Low. Start last.
• No Auto Start. The VM is clustered for live migration and management benefits but does not automatically restart on failover. Per the Microsoft post, this is useful for low priority VMs you do not necessarily want to fail over but want clustered for live migration.

The PowerShell pattern:

Per Microsoft Q&A documentation and the Microsoft Community Hub failover policies guidance, the priority numeric values are: High = 3000, Medium = 2000 (default), Low = 1000, No Auto Start = 0. Per the Petri community reference and consistent with Microsoft Q&A, only those exact values should be used; intermediate values like 1500 are unsupported.

The pragmatic application:

• High priority for infrastructure VMs (domain controllers, monitoring infrastructure, certificate authorities, RDS connection brokers)
• Medium priority for production workloads (the default)
• Low priority for development, test, and non critical workloads
• No Auto Start for VMs that should not come up automatically (specific batch processing VMs, scratch test VMs)

The point of priority is to control startup order during cluster cold start or large failover events. The high priority workloads come up first and are stable before the medium priority workloads start contending for resources.

Persistent mode

Per the Microsoft Community Hub failover policies post, when a cluster is shut down and restarted, clustering attempts to start VMs back on the last node they were hosted on. This is the Persistent Mode setting and is enabled by default. The default amount of time the cluster service waits for the original node to rejoin is 30 seconds, configurable via the cluster common property ClusterGroupWaitDelay.

The implication: after a planned cluster cold start, VMs return to their original hosts when those hosts come up. This is usually correct because it preserves the placement layout the operations team set up. For high priority VMs where you cannot wait, you may choose to disable Persistent Mode so the VM starts on the first available node rather than waiting for its original home.

Application level HA on top of VM HA

VM level HA gives you "the workload comes back somewhere within a few minutes." Some workloads need better than that.

SQL Server Always On Availability Groups

SQL Server AG provides application aware replication and failover. The pattern on Hyper-V:

• Two or more SQL Server VMs, each with their own database instance, replicating via AG
• Anti affinity (AntiAffinityClassNames) keeps the AG VMs on separate hosts
• The AG listener provides a single connection point to clients
• Failover happens at the AG layer (synchronous replicas can fail over with no data loss; asynchronous replicas have an RPO based on replication lag)

What this gets you over VM HA alone: failover in seconds rather than minutes, no service interruption for the database itself (only for in flight transactions), the ability to fail over for planned maintenance without VM restart.

Exchange DAG

Exchange Database Availability Groups provide similar app aware replication for mailbox databases. The Hyper-V design pattern is the same: multiple Exchange VMs, anti affinity keeps them on separate hosts, the DAG handles replication and failover at the application layer.

For both SQL AG and Exchange DAG, the VM level HA still has value as a backstop. If the entire VM fails (not just the application), the cluster restarts the VM and the AG or DAG reestablishes the replica.

Scale Out File Server

Per Microsoft Learn, Scale Out File Server (SOFS) provides active active SMB file server access across multiple cluster nodes. All nodes serve client requests simultaneously. A node failure means clients reconnect to surviving nodes via SMB transparent failover; no service interruption from the client perspective.

SOFS is the right answer when the workload is file server access (Hyper-V VHDX storage on SMB shares is the canonical example, also useful for some shared application data scenarios). It is not the right answer for general purpose user file shares; use a traditional clustered file server for those.

Generic clustered services

For applications without their own HA mechanism, Failover Clustering supports generic services and generic applications as cluster resources. The cluster monitors the service or application, detects failure, and fails over to another node. This is dated technology compared to modern app aware HA but it still has uses for legacy applications that need to be made highly available.

When VM HA is enough versus when it is not

The rule: VM HA gets you availability measured in minutes. App level HA gets you availability measured in seconds. Most workloads do not need the second measurement, but the ones that do are usually the ones where the cost of unavailability is concentrated (databases, mail, high value transactional systems). Identify those workloads early and put the right HA layer underneath them.

Restart policy

Cluster Resource Restart settings control what the cluster does when a clustered resource fails. For VMs, the relevant settings are restart attempts within a window and the action when those attempts fail.

The defaults are reasonable for most VMs: attempt restart, fail over to another node if the restart attempts within the window are exhausted. The settings to think about:

• Maximum restarts in specified period. How many times to attempt a local restart before giving up and failing over.
• Period. The window over which the restart count is measured.
• If restart is unsuccessful, fail over all resources in this Role. Whether to fail over the entire role or just mark it failed.
• If all the restart attempts fail, begin restarting again after the specified period. Backoff behavior.

The defaults work for most VMs. The case where you want to think about it explicitly: VMs that fail repeatedly due to a configuration issue inside the guest will cycle through nodes if the cluster keeps restarting them. Setting a more aggressive backoff or a lower maximum restarts can prevent the failing VM from disrupting healthy nodes.

The HA design mistakes that bite you later

Treating VM HA as the entire HA story

VM HA gets you availability in minutes. For databases, mail, and high value transactional workloads, that is not enough and the cost of the gap is high. Identify which workloads need app level HA and design accordingly.

No anti affinity on redundant pairs

Two domain controllers on the same Hyper-V host is not redundancy. AntiAffinityClassNames is the cheap fix. Apply it to every pair or set of redundant infrastructure: DCs, AG replicas, DAG members, redundant load balancers, redundant monitoring servers.

Hard anti affinity (ClusterEnforcedAntiAffinity) by default

The hard variant is appropriate for specific compliance and licensing scenarios. As a default, it produces the wrong tradeoff (separation over availability) for most workloads. Stick with soft anti affinity unless you have a documented reason for hard.

Possible owners restricting where you forgot

Setting possible owners and forgetting is a classic operational hazard. Document the reason in the VM description or cluster role notes. Audit possible owners restrictions quarterly. The most painful failovers are the ones that did not happen because of a possible owners list nobody remembered.

All VMs at medium priority

If everything is medium, nothing is. During cluster cold start or large failover events, the order of VM startup matters. High priority for infrastructure VMs (DCs, monitoring, certificate authorities) gets them up before the workloads that depend on them.

VM Monitoring on services that flap normally

VM Monitoring rebooting a busy production VM because of a transient service issue is worse than not monitoring. Test the recovery action behavior in non production. Apply VM Monitoring to services where a true failure is rare and a reboot is the right recovery, not to services that come up and down as part of normal operation.

No documented failover behavior for critical workloads

The runbook for a critical workload should include: what happens when the host fails, what happens when the application fails inside the VM, what happens when storage fails, what the expected recovery time is, what manual intervention is required if the automatic path does not work. If nobody can answer those questions, the HA design has not been tested and the first real failover will be the test.

Skipping the HA test

HA designs that have never been exercised do not work as expected. Plan for a test failover at least quarterly for critical workloads. Do it during a controlled window, not during an actual incident. If the test reveals problems, fix them before the unplanned failover finds them for you.

Application HA without VM HA underneath

SQL AG and Exchange DAG fail over fast at the application layer but they still need the VM to be running. If a host fails and the AG primary VM stays down because nobody clustered the VM, the AG synchronous secondary still takes over but the VM that died now has to be rebuilt manually. Both layers of HA matter.
